Motion Controllers

AVEOX Sensored & Sensorless Motor Controllers

Our controllers are designed to integrate with brush and brushless motors, delivering the industry’s most efficient, reliable and cost-effective motion control solutions for mission-critical applications. We offer modular designs, standard commercial off-the-shelf (COTS), or fully customized controllers tailored to your needs.

Our motion controllers incorporate AVEOX’s proprietary “Smart Start” technology, ensuring reliable and quick starts regardless of initial rotor position or mechanical load.

AVEOX’s Modular Motion Control (MMC) Platform

Offers Unparalleled Flexibility & Scalability to Meet Diverse Needs

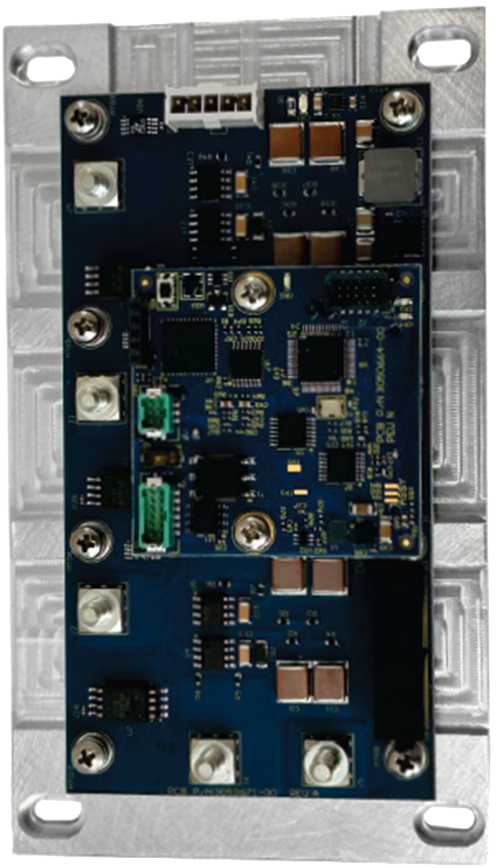

AVEOX’s Modular Motion Control (MMC) platform is an interchangeable family of commercial-off-the-shelf (COTS) power stages and logic boards for motor control, representing a revolutionary advancement in the field of motor control systems. These sophisticated devices consist of interchangeable components that can be easily configured and expanded as required.

This modular approach allows for cost-effective customization, reduced downtime during maintenance or upgrades, and simplified troubleshooting.

MMC Power Board with Over 50 Different Configurations:

Our ruggedized universal 3-phase power boards offer isolated inputs and outputs and direct connection to application with high-vibration connectors.

MMC Controller/Logic Board:

Choose from sensorless Field-Oriented Control (FOC) with Windows GUI or Hall Effect sensor based analog commutation.

Modular Motion Controller (MMC) Parameters

Model	Controller Board	Voltage Max (V)	Peak Current (A)	Operating Temperature (°C)	Weight (g)	Size (inches)	Product Information
MMC4423-80-100	FOC or Analog	80	100	-40 to 70	183	5.25 x 3.00 x 0.90	Download

Customized Motion Control Solutions by AVEOX

AVEOX offers custom design and manufacturing services to meet your exact needs. Customized solutions are available with either simple analog electronics or advanced hardware and software for programmable functionality.

Our customized motion controllers are capable of handling currents up to 400A and voltages as high as 900V. They feature advanced commutation options, including Trapezoidal and Field-Oriented Control (FOC) and are available with simple analog electronics or sophisticated micro-BIT processors with embedded programmable functionality. Communication options include CAN, RS422, and EtherCAT.

Reliability Tested for the Harshest Conditions

Operating Temperature: -55 °C to 125°C
Submergibility: Oil, Fuel, and Coolant
Vibration: Mil-Std-810/RTCA DO-160
EMI Test: Mil-Std-461/RTCA DO-160
Embedded Software: DO-178B validated process
Saber Modeling, Simulation & Analysis

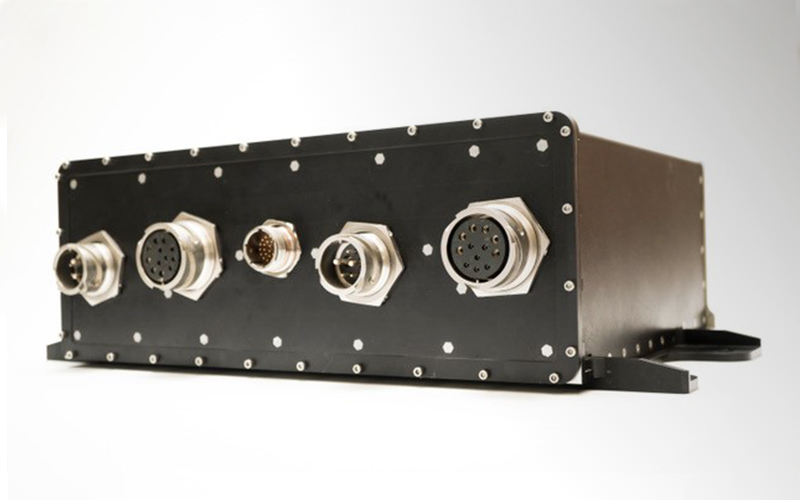

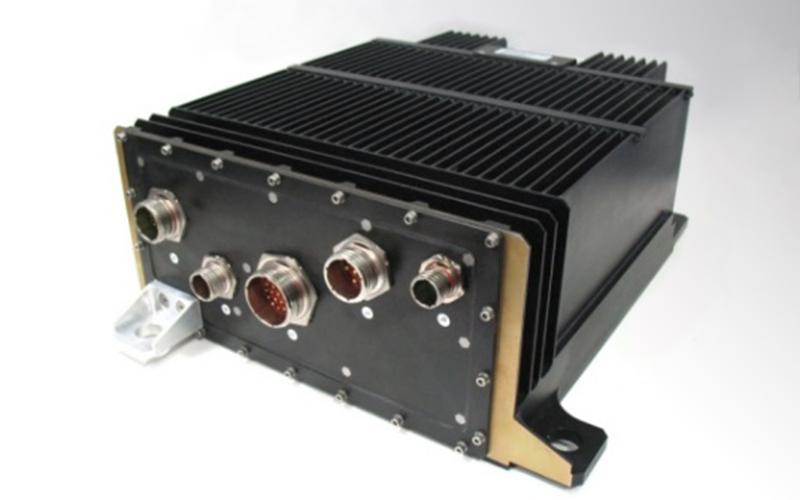

Examples of Customized Motion Controllers

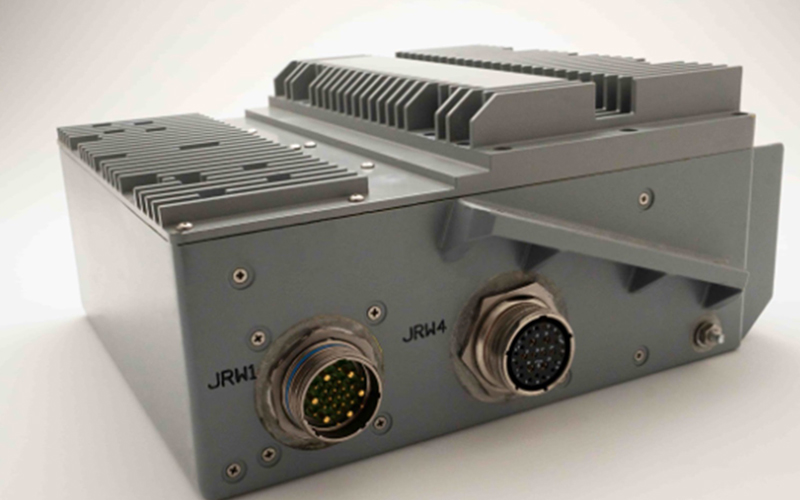

Military Aerospace Motor Controllers

Key Features:

Power range from 1.5kW to 16kW
Integrated active Power Factor Correction (PFC) tested to DO-160, Section 16 standards
Meets DO-254 / DO-178B DAL-B safety standards
Four-quadrant current loop & velocity loop to maintain desired speed
Integrated shunt enables steady speeds under varying loads
