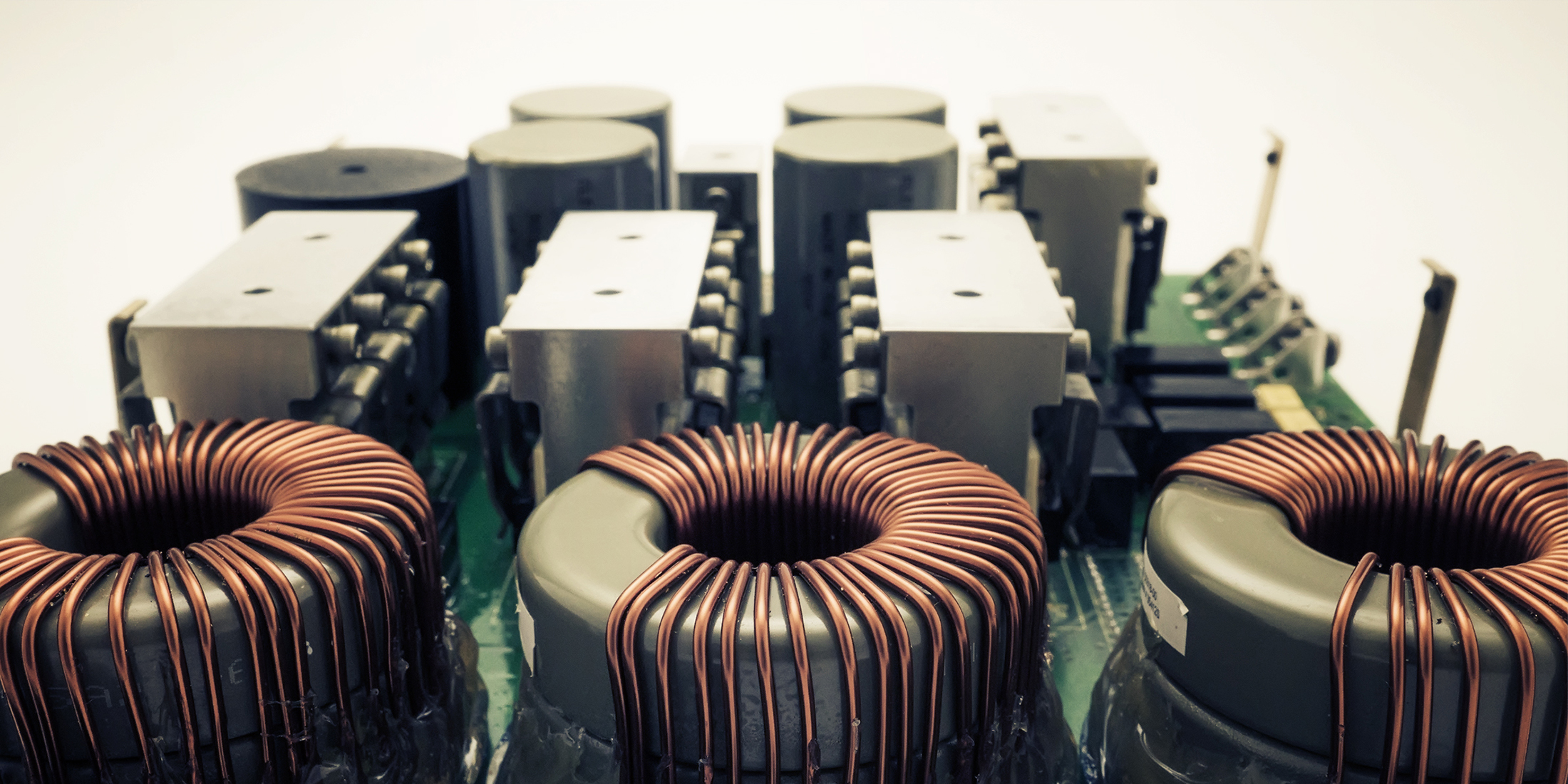

Advanced Power Conversion Modules by AVEOX
Our power conversion products feature proprietary three-phase Active Power Factor Correction (APFC), designed to meet the strict correction and harmonic distortion requirements of next-generation commercial and military electrical systems.
By utilizing APFC technology, our modules achieve a typical weight reduction of 60% or more compared to traditional passive designs.

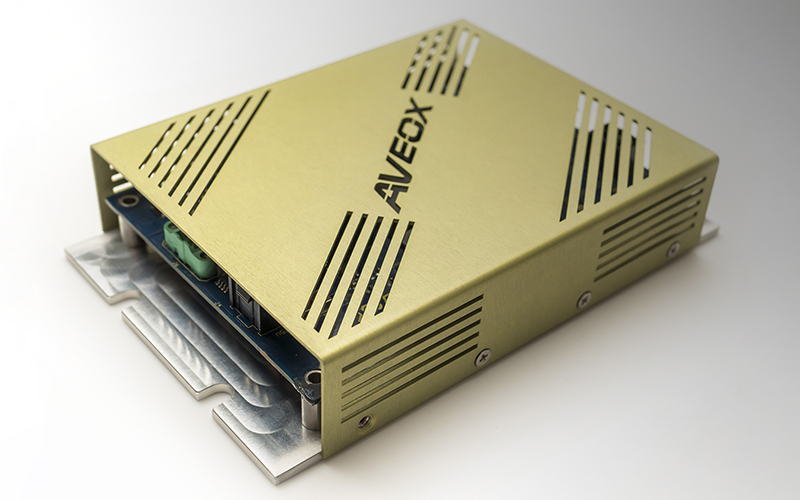

Three-Phase APFC Power Converter Products
Our power converters are designed with an all-analog control architecture, simplifying qualification processes. Featuring high power density, our converters serve as lightweight replacements for ATRUs and deliver ultra-low harmonic distortion with a THD of less than 0.7%. They are well-suited for applications such as three-phase AC power supplies, motor controller front ends, and electronic warfare or radar power supplies. Additionally, they are designed to handle unbalanced inputs without the need for a neutral connection.
Purpose Built to Meet Demanding Industry Standards
- SAE ARP-4754 DAL A
- MIL-STD-1399
- MIL-STD-461 CE101
APFC Power Converter Parameters
| Key Parameters | |
|---|---|
| Topology | Three level boost (Vienna Rectifier) |
| Current | Scalable to any current |
| Input Voltage | 115 to 308 RMS voltage |
| Input Frequency | Meets variable “Wild” frequency AC input requirements for avionics |
| Power Level | 1.5kW to Unlimited |
| Communication | Isolated BIT |
| Architecture | Meets definition of simple electronics per RTCA DO-254/DO-178 |
| Harmonic Compliance | DO-160 Category A (Wide Frequency) & Airbus ABD0100.1.8 |
| EMI Compliance | DO-160 & MIL-STD-461 |
| Options | Increased boost voltage, pulse load filtering, DC/DC converters |

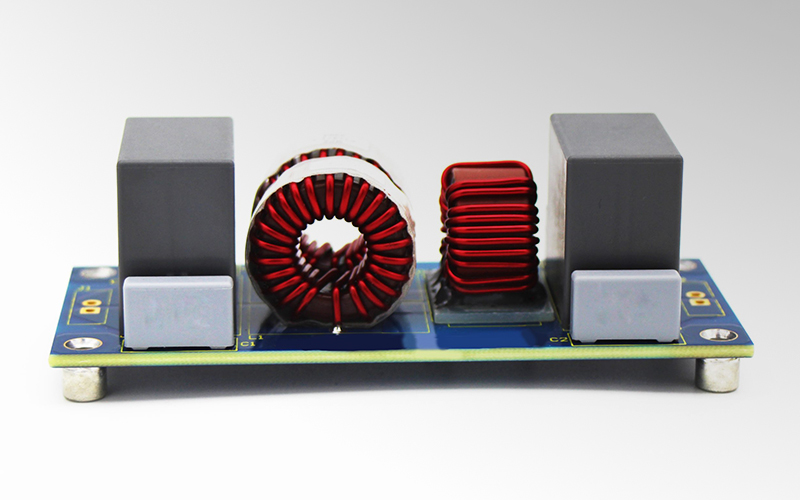

EMI Filters
EMI filters are essential for many types of equipment and systems, including medical, military, aerospace, commercial and industrial applications. These filters are designed to suppress or dampen electromagnetic noise transmitted via conduction. By extracting unwanted currents conducted through cables or wiring, EMI filters ensure that desirable currents flow uninterrupted, maintaining optimal performance.
Our EMI filters complement our motors, controllers and power converters, creating integrated solutions that ensures superior system performance and reliability.
COTS EMI Filters
| Product Name | Amps | Volts | Size(in) |
|---|---|---|---|
| EMI 10A400VE | 10 | 400 | 4.40 x 1.90 |
| EMI 20A400VE | 20 | 400 | 6.65 x 2.00 |
| EMI 30A400VE | 30 | 400 | 7.375 x 2.10 |
| EMI 40A400VE | 40 | 400 | 8.575 x 2.40 |
| EMI 10A800VE | 10 | 800 | 4.725 x 1.90 |
| EMI 20A800VE | 20 | 800 | 6.35 x 2.40 |
| EMI 30A800VE | 30 | 800 | 9.15 x 2.30 |
| EMI 40A800VE | 40 | 800 | 9.65 x 2.40 |
